£27.49

Please use the tabs below to read through the information about this Pre-Wired harness kit. From a run down of what the kit does, to important fitting information and full specs.

Order times

I usually make harnesses to order, due to the variety of spec options that could be chosen across the whole range. The current turnaround time for a harness orders is around 5-7 working days depending on quantity of orders in at the time and your order will be updated accordingly when it is dispatched. This turnaround time doesn't include the transit time. Thanks for your patience whilst I get your harness made!

Model Description

This kit is as simple as they can come, but it is a tip of the Hurley Cap to one of my most favourite signature Fender guitar models and is incredibly nostalgic for me, the Tom DeLonge Signature Stratocaster. I spent countless hours staring at the Fender Frontline catalog back in the day wishing I had one of these guitars, super back to basics design but nonetheless wicked guitars. With the originals increasing in value, I know a lot of us are making partscaster replicas instead, so I wanted to offer a pre-wired volume pot kit to help with those projects! After having the privelege of working and inspecting an all original 2001 TD Strat thanks to one of my regular customers and supporters, I was able to have a closer look on an early example before finalising my own kits specs.

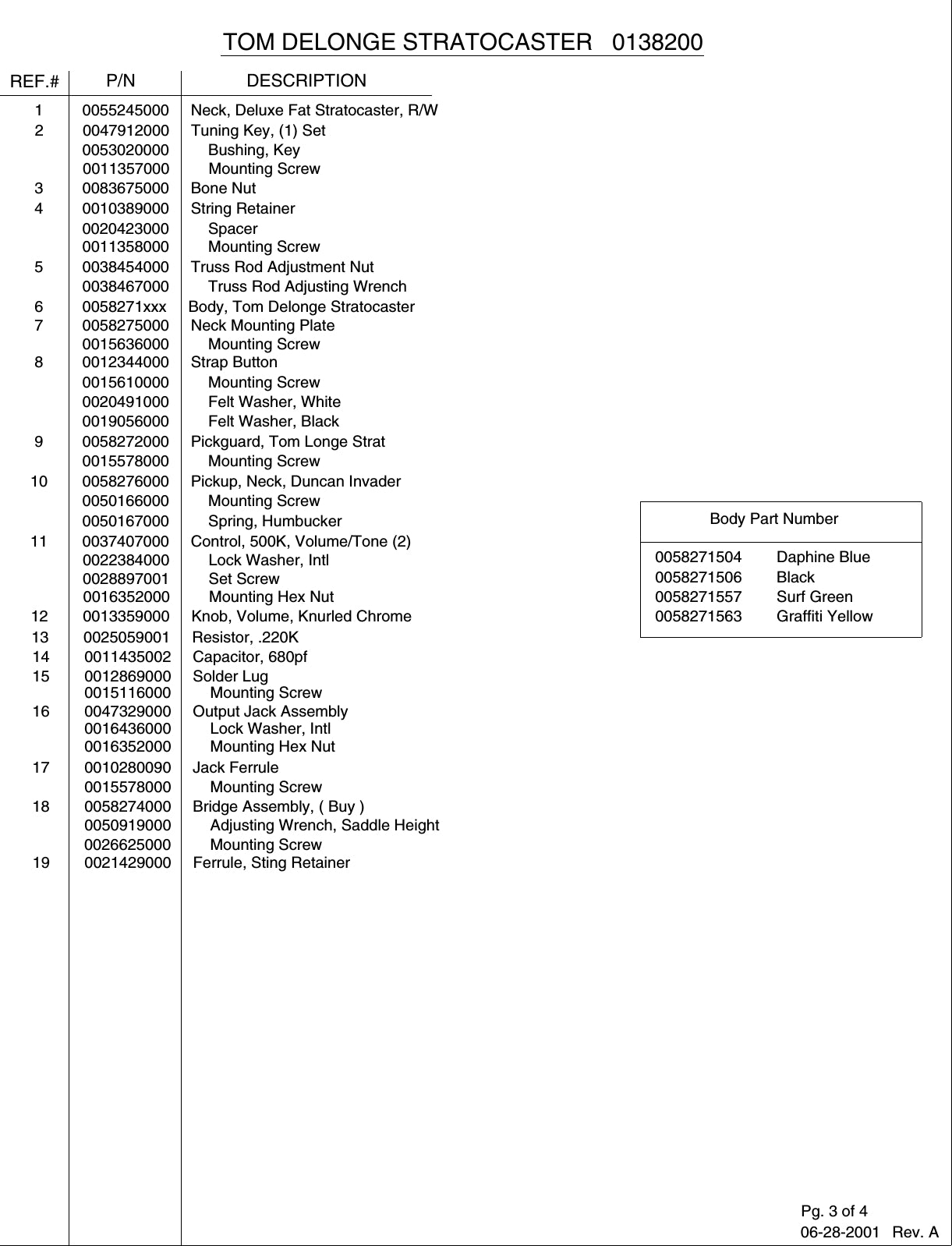

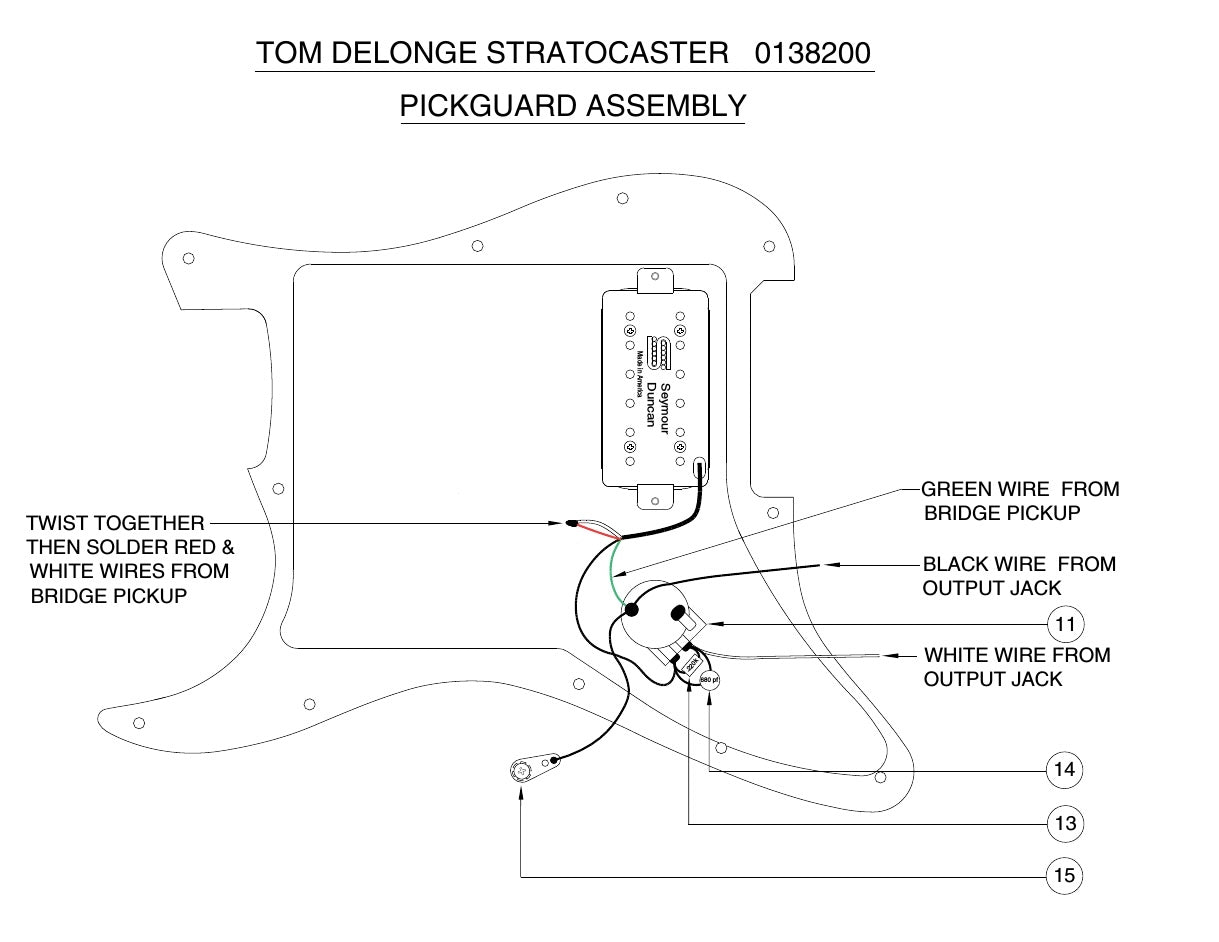

This factory Fender TD signature model had a CTS 500k pot as expected, as well as a treble bleed, which featured a 680pF capacitor and 220kOhm resistor wired in parallel. This spec was also noted on the original Fender manual/parts list for the TD strat too. It's not a totally common treble bleed cap and resistor spec, so I thought that was quite interesting and liked how it sounded with the original Seymour Duncan Invader too. So I did a little further testing of that spec on one of my own SD Invader loaded pickguard guitars and I think it suits it really well, so happy to continue on with those specs. The all new re-issue Delonge Strat launched in July 2023 also features a Treble Bleed as noted in the Fender press release info/spec. After being able to inspect one of these reissues, they have a new/different treble bleed spec which is a PCB with SMD, 1.1nf capacitor, a 150kOhm resistor in parallel with an additional 47kOhm resistor in series. This sounded and worked great but for my delonge kit, I have decided to stick with the original TD treble bleed spec. Prefer it made without the treble bleed at all though? Sure, just drop me a message prior to ordering and I can sort that no worries. I make it with the best components I have available to me, CTS 450 series audio taper pot, Gavitt 22awg wire, my treble bleed mod and the brilliant Pure Tone multi contact jack socket.

Please note, website example photo(s) may differ visually from the wiring kit you receive. This could be for a number of reasons but ultimately, don't be alarmed if you do spot differences between the stock photo and your supplied kit.

Product Options

Pot shaft type
The first drop down option is the choice of split shaft or solid shaft control knobs. If you wish to fit a push-fit style control knob (like Tom's Starcasters), you'll need the split shaft option and a control knob that will suit a CTS 5.95mm 24 spline split shaft pot.  OR if you intend to fit a grub screw secured control knob (like the ones on the old Strats), they usually need a solid shaft pot so you choose the solid shaft option and install your grub screw fixed control knob on a 6.35mm solid shaft pot.

Bridge/vibrato claw ground wire
I have decided to make this option available, as many of you may be using this wiring kit on a new, partscaster type build for example. If you are fitting this kit into your existing guitar, and re-attaching the guitars original bridge or vibrato claw ground wire then simply select without. If you have had to remove the original perhaps, or it’s for a new build altogether and would find having a ground wire pre soldered, simple select with! Hope this option helps with your specific project.

Fitting information

I have intended for my wiring harnesses to be as simple as possible to install to your Stratocaster, as well as writing in depth general fitting guides and simple to follow wiring diagrams for each wiring style. There are also multiple useful how-to guides regarding wiring work found HERE too. But in this section you'll find some important fitting notes that will hopefully help you assess whether the kit is suitable for your exact Strat or what is required to allow it to fit correctly.

Can I fit this kit myself?
This ultimately comes down to whether you own the equipment needed to correctly and safely install the kit, or how comfortable you feel working on your own guitar. I do feel that installing a pre-wired guitar harness is do-able for many guitarists but only if the correct tools are used and care is taken to ensure you do not damage the kit, your guitar or yourself! There are detailed installation guides here on my website, as well as simple to follow wiring diagrams all to help make the process as easy as possible and in my experience, these have helped thousands of my customers carry out their own install. But if for any reason you have concerns about fitting the kit yourself which is entirely understandable, then I'm sure you'll agree that it is likely best to have a professional fit the kit and help ensure your purchased kit, and your beloved guitar are both looked after and worked on correctly.
If you are local to me (Stourbridge, West Midlands) I take on guitar work no problem at all so will certainly be able to help install your Signature Series harness.

Will the pots/jack fit my pickguard and jack plate?
The components I use in my Signature Series wiring kits are for the most part, USA imperial specification. If you're fitting this harness to a far east built guitar such as a Squier or similar brand, then you may have to widen the holes in the pickguard to accommodate for these imperial measurement pots. Or alternatively, purchase a new pickguard that is already suited to the US spec components. The CTS pots and Pure Tone multi contact jack have a mounting thread shaft diameter of 0.369" / 9.38mm so I recommend for ease of install a pickguard and/or jackplate with 0.394" / 10mm pot/jack mounting holes. You can easily widen the holes in the Pickguard too if you would prefer, I recommend doing this safely with a step cutter drill bit. I also offer this as a service so if you would like me to widen your plate for you, do please get in touch and we can organise this additionally.

If you’re buying this kit for a USA or Mexican made Strat, then chances are it will be a direct, no modifications install process for you.

What control knobs will fit?
The kit uses CTS Split shaft pots which have a adjustable split shaft diameter of 5.95mm w/ 24 splines or CTS solid shaft pots which have a solid brass 0.25" / 6.35mm shaft for mounting the control knob. You will need control knobs that suit these measurements.
Do not attempt to force fit smaller, metric/import spec control knobs onto the imperial USA spec pots, doing this can damage the pot.

If you do require a US spec control knobs, I do carry a selection of popular options in stock and they can be viewed in the Control Knob category on the store.

Do you make custom Delonge spec pickguards?
Quick answer? No, but if you need one then I recommend reaching out to my friend Tom at House95 Guitars who makes really nice quality replacements. I am not affiliated with House95 Guitars but on the occasions I have seen and worked with their pickguards, I have been impressed so figured it was worth a recommendation here.

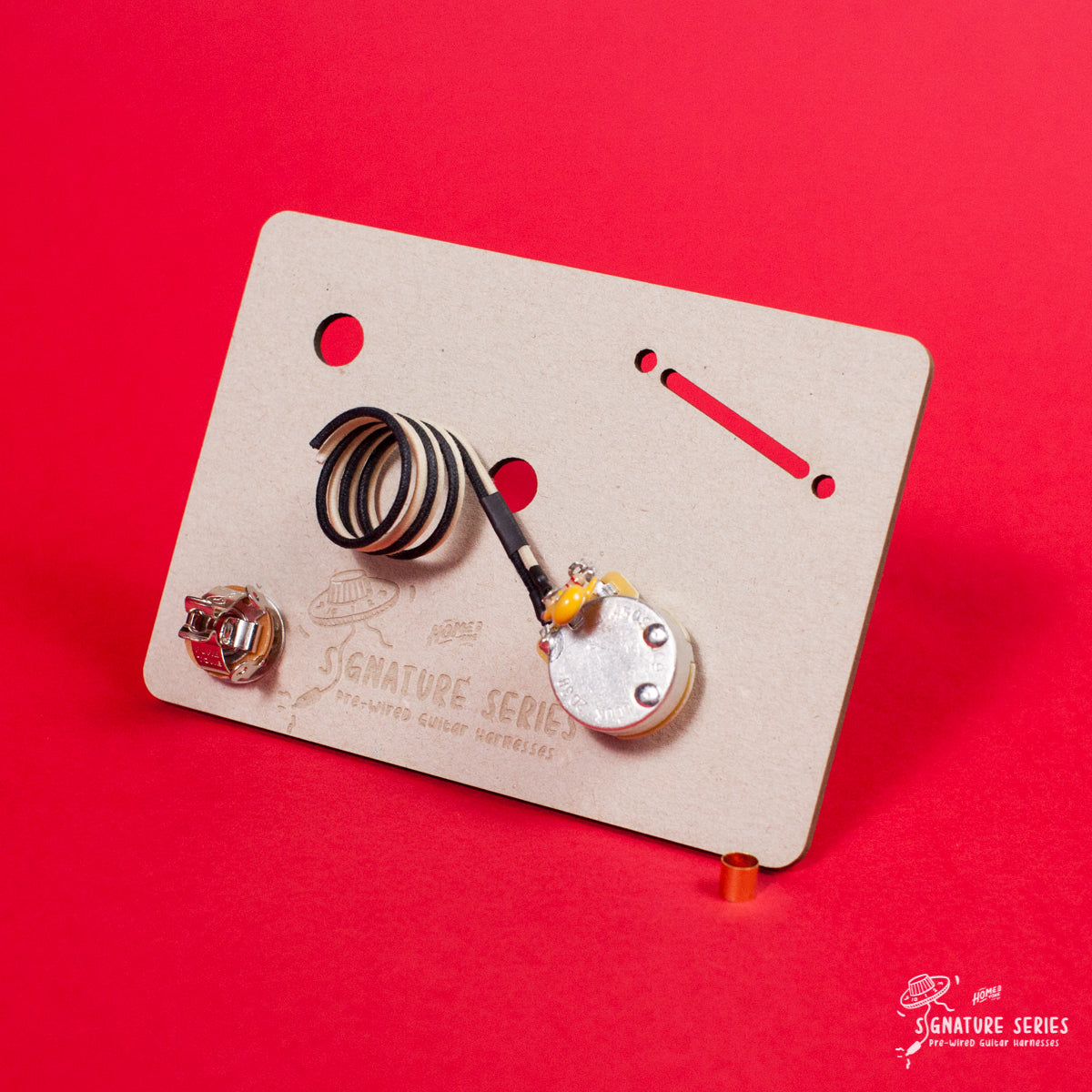

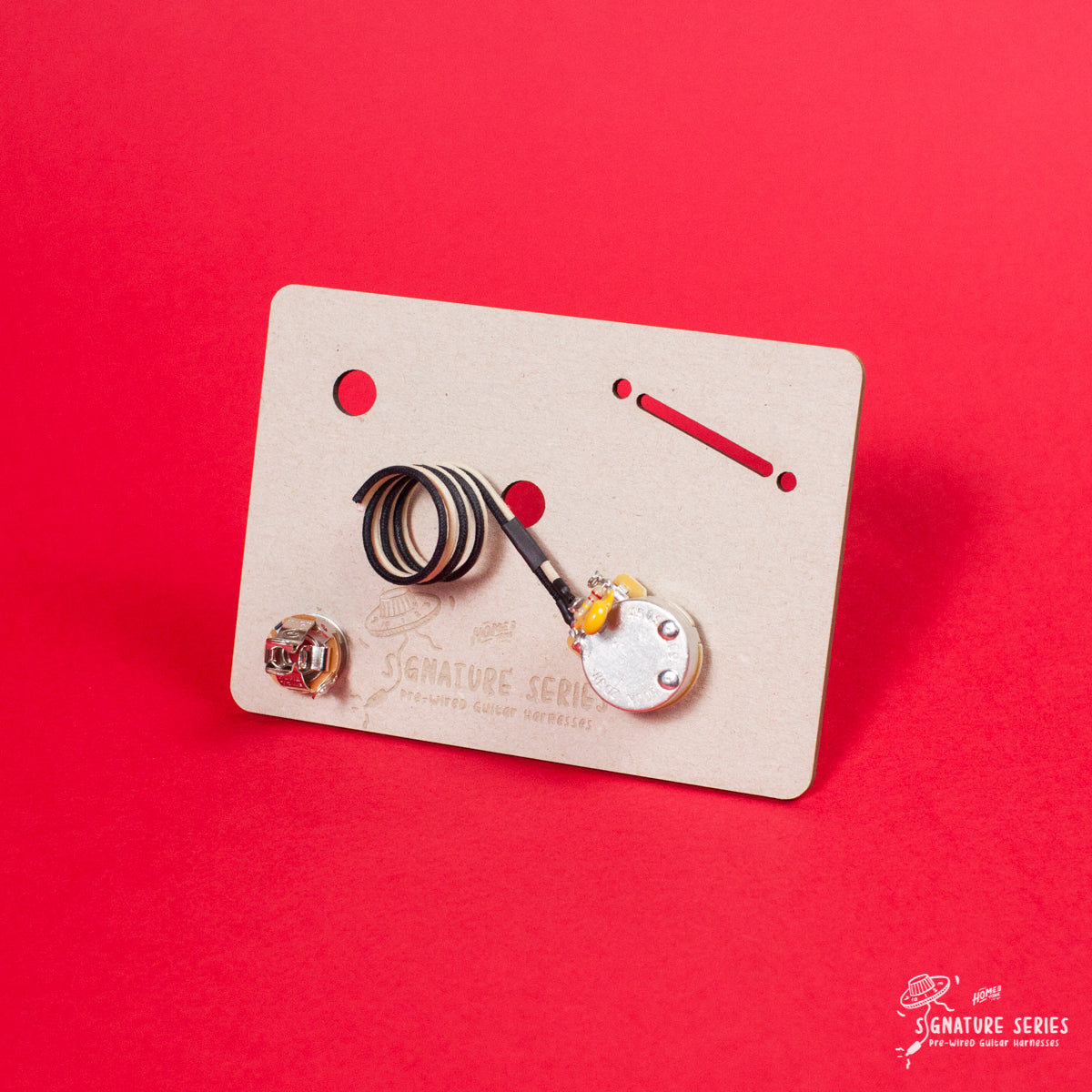

Specs/Parts included

- 1x CTS '450' Series +/-10% Tolerance short shaft pots - 500k
- 1x Pure Tone multi contact jack socket (nickel finish)
- Ceramic 680pF capacitor & Carbon Film 220kOhm parallel wired treble bleed
- Gavitt USA made cloth covered 22AWG wire
- 20AWG Tinned copper ground
- Soldered using R-Tech Premium Lead-Free (Sn95.5Ag3.9Cu0.6) 22swg Solder wire
RoHS Compliant

Please note - wiring kit does not include new control knobs/switch tip/control plate etc but does include the pot/jack mounting nuts and washers and switch mounting screws.

Why these spec parts over others available?
Simply put, component choice has been one of the most important parts of my product development. I have worked on guitars for many years, and built these kits professionally since 2015, and as a result have been able to see and experience working on the majority of components available on the market. In my findings, A/B testing and more, I have found the components I decided on for my Signature Series to be the most reliable, best tolerance and great functioning parts to use to help customers get the most out of their instruments. I use CTS '450' series premium spec pots as they have a tight tolerance, and will consistently provide me with accurate value, as well as very solid build quality. I use trusty 'Mustard' style polyester film 'tone' capacitors as in my opinion they simply can't be beat for great value, solid construction, solid lead-outs, super tight tolerances and reliable tone/function. I would personally much rather use a trusty Mustard for example over something like a paper in oil, as from experience that are so much more reliable to use. This is from carrying out a lot of A/B testing, both tonally, as well as armed with the multi-meter for testing values and actual tolerances, as well as handling them to test construction quality for long lasting reliability in use. I use the brilliant 'Pure Tone' Multi Contact Jack sockets as they are incredibly reliable, due to their additional contact points for both tip and sleeve. I use CRL, Oak and Switchcraft brand switches across the range as these are built very well, with care will last for many years to come and have long since provided me with reliable use professionally. All kits are wired up with quality USA made Gavitt wire, it's great to work with, super consistent gauge and provides me with a very reliable quality item for my kits. I totally understand that with anything guitar, it is subjective, but I have, with an open mind, thoroughly tested a broad variety of components over the years and these have all become the items I trust to use every day.

Harness FAQ's

I've been proudly making, developing and installing my pre-wired guitar harnesses since the beginning of the Home of Tone back in 2015 (time flies when you're having fun right!). Although I feel I do my best in covering as much information as possible across the various product listings, fitting guides, wiring diagrams and more, I thought it might be helpful to put together an FAQ's page that covers some of the general additional questions I get asked. You can view these Harness FAQ's HERE

'Ground Bug' deal!

Looking forward to installing your new wiring, but a little worried about making the ground connections to the pot casings? First time soldering and hear the horror stories of frying pots, or just simply want to neaten up your installs? Then the awesome 'Ground Bug' will help with any of these concerns, beginner or pro modders alike. The Ground Bug is a pot washer that fits between the pot casing and the pickguard/body and has a number of lugs (much like with the main signal connections on the pot for example) to which you can very easily solder your ground wire connections too. Completely removing the worry and risk of soldering a pot casing, something I know many guitarists complain about having to learn to do.
I have been stocking Ground Bugs for a while, and they really are the perfect match for a pre-wired harness as they further help you with your installs. So I have set up a 10% off Ground Bug deals when purchased with a Home of Tone Signature Series pre-wired harness. This is an automatic discount code, so all you need to have is a Signature Series kit, and a Ground bug in your cart, and the discount will automatically be applied to the bug for you! Click HERE to view the Ground Bug listing
