Fender - Engine Room® LVL8 Power Supply
Please use the tabs below to read through the information about this product.
About
I have long been on the hunt for some good pedal power supplies to stock, and these really caught my eye for being feature packed. Introducing the Fender Engine Room pedal power series. This being the middle of the lineup, the LVL 8. Despite sitting between the baby LVL 5 and monster LVL 12, this supply suits mid to large boards and is packed with features. This is a quality, high spec supply with 8 ground isolated power outlets. 6 of the power outlets are 9Vdc right at 500mA which is generally ample for most modern day high draw pedals. While 2 additional outlets provide switchable voltage 9v/12v/18v via 3-way toggle or slide switch, particularly useful if you have some rather specific pedals in your chain. You'll also find a USB-A and USB-C output sockets for charging/power of smart devices. Perhaps a feature very useful to those that ultilise iPads for example in their live setups. Really impressed by these, some great features, solid design and well made. Pleased to finally have a good pedal power range available here at the Home of Tone as an authorised Fender parts and accessories dealer.
What Fender say..
"Pedals need clean isolated power and Fender's Engine Room® LVL8 Power Supply is capable of the task. Featuring eight ground isolated power outlets, (6) are capable of delivering 9Vdc at 500mA while (2) additional outlets provide switchable voltage (9v/12v/18v) via 3-way toggle or slide switch. Perfect for performance or studio players and can be daisy-chained with our LVL12 for players looking for more tonal variety.
The Engine Room® Power Supply is designed by our in-house team of experts in Southern California. The chassis is crafted from lightweight, durable anodized aluminum, and its sleek, low-profile appearance is engineered to accommodate most pedalboards. Also features a 2-color LED indicator for each output, green indicating current consumption. Road-tested and ready for live or studio use, Fender's Engine Room® Power Supply is built to power your performance."
Specs/Power
- 8 ground isolated outputs - 6 outlets fixed 9Vdc at 500mA and 2 outlets with switchable voltage (9v/12v/18v)
- Global mains input voltage (100-240Vac) 50/60Hz for use anywhere in the world

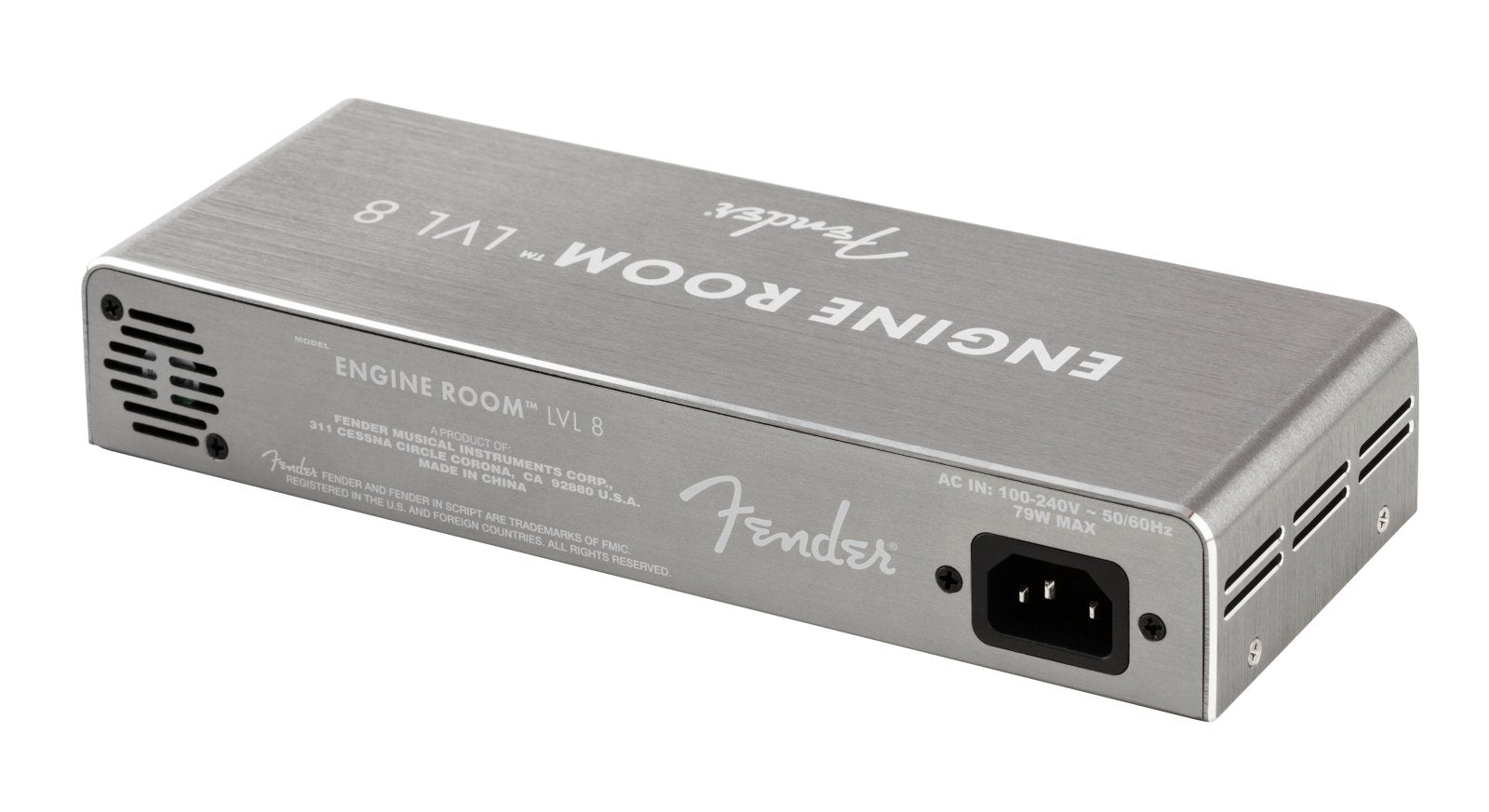

- Standard IEC mains voltage connector
- Dimensions: Width: 9.6" (244mm), Height: 1.65" (42mm), Depth: 3.59" (91.3mm)
- 5V USB-A and USBC output for charging smart devices

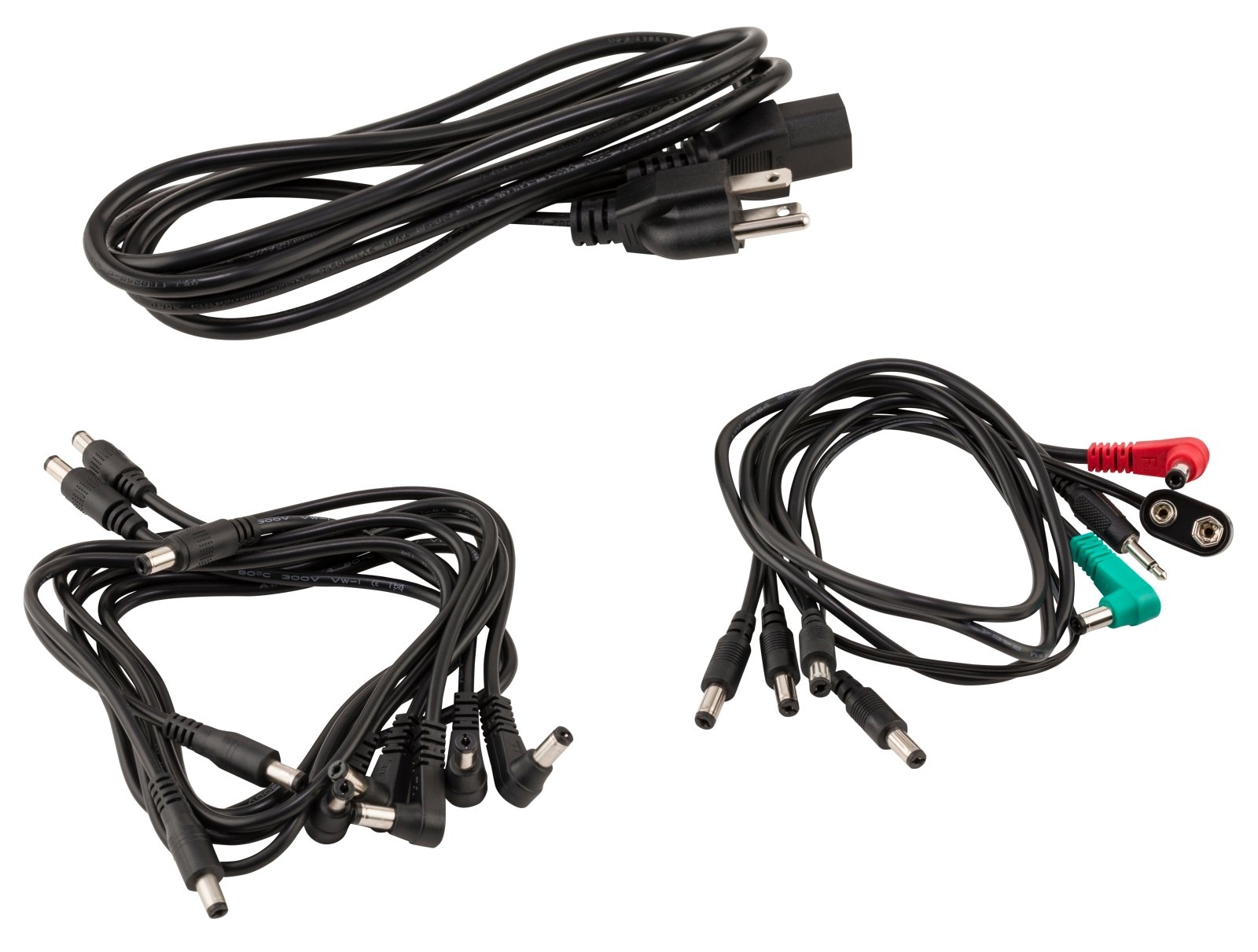

- Cable kit included:
- 4 x 2.1mm barrel connector 24" (60cm) length
- 2 x 2.1mm barrel connector 18" (45cm) length
- 2 x 2.1mm barrel connector 12" (30cm) length
- 1 x 2.5mm to 2.1mm barrel
- 1 x 2.5mm to 2.1mm barrel reverse polarity
- 1 x 3.5mm TS to 2.1mm barrel
Hear about it
Do you have them in stock?
You betcha'. These are in stock, here at James' Home of Tone available for collection and ordering.
Ordering/shipping
Local pickup - If you are local and wish to collect any items or order in advance for collection on a specific day, then you can still place an order online and select local pickup at the checkout. Or drop me a message and I'll reserve the items ready for your visit.
For online ordering and dispatch - In stock, non made to order items are processed and dispatched 4 days a week; Monday, Tuesday, Wednesday & Friday.
For orders that are placed on a Monday, Tuesday, Wednesday & Friday I have an order cut off time of 14:00GMT (with Royal Mail shipping services only) to allow me chance to process, pack and dispatch your order same day.
For non dispatch days (Saturday, Sunday, & Thursday) there is no order cut-off time, and these will be processed, packed and shipped on the closest following dispatch day.
I will always endeavor to fulfill orders as quickly as I can and if you have specific requirements for a delivery date please do let me know and hopefully I can help.
If you have more queries regarding order placing, processing, fulfillment or general shipping then please see the FAQ page HERE
