CTS Premium '450' Series 275k pot - Split shaft with 3/8" bushing

£5.83

About

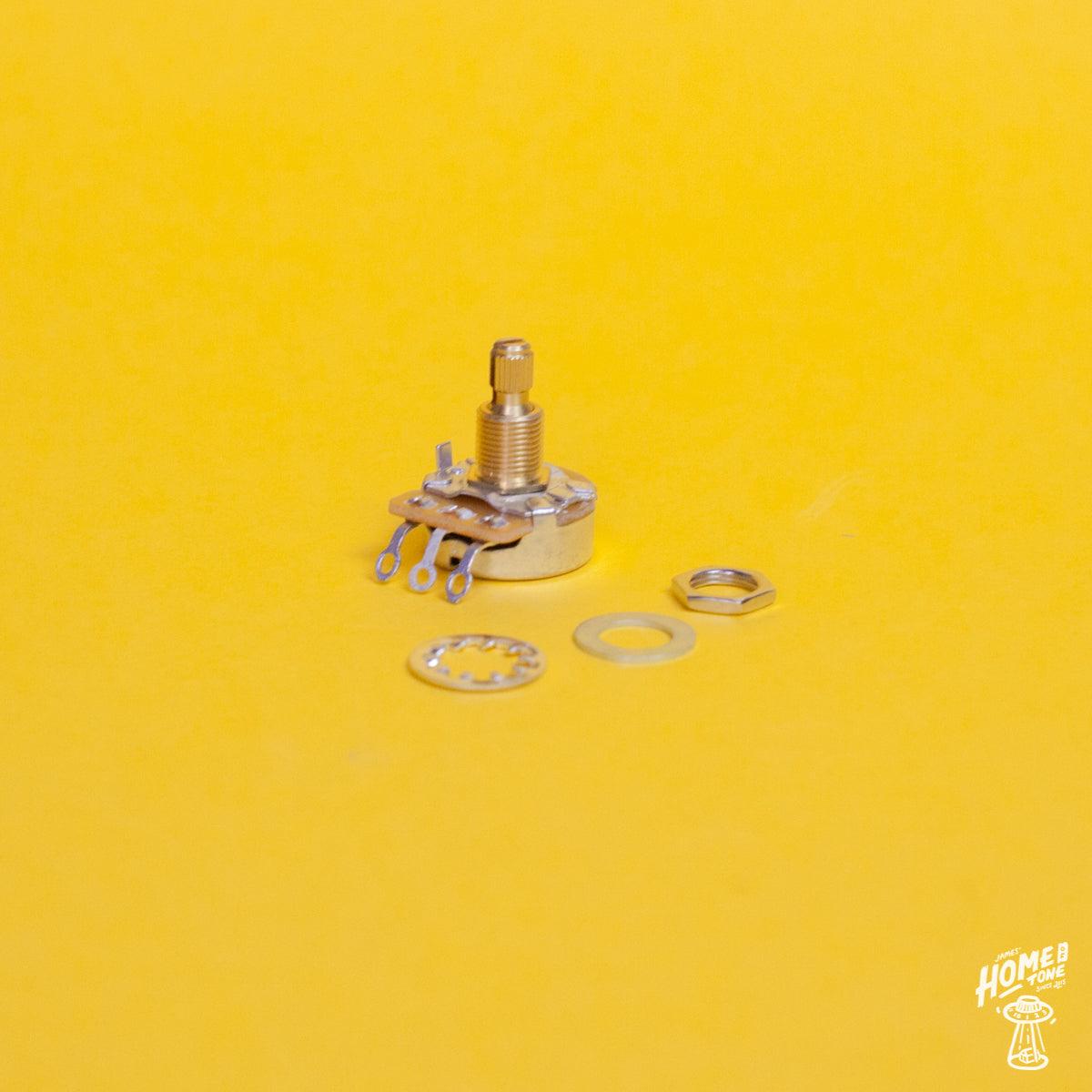

This premium, '450' series spec CTS pot features a +/-10% tolerance which is incredibly important as the rating is accurate to the requirements. Their construction is also a longer life-span brass shaft and bushing with a graphite wiper. Each pot comes complete with a nut, washer and star tooth washer.

Although this particular pot can still of course be used in strats or other pickguard mount models, I stock this spec of 275k pot as it has a longer mounting thread length (3/8") than the 'SSSP' versions I also stock ( which are shorter 1/4"). This can be particularly useful if you need these for a body mount build/project rather than the usual Strat/Tele pickguard and control plate mounting which the SSSP suits due to it's shallower mounting thread depth.

I have added a photo example of this to this listing, so this shows a 'SSSP' spec 250k pot on the left, and this 450 series spec 275k pot on the right, with the longer thread length. Hope this helps!

The distributor who commissions these have change the specs slightly, so these are now 275k value as standard. I'm afraid they no longer do a 250k value spec, so this is the only option for now I'm afraid.

Specs

275k Split Shaft Specifications
Total pot depth - 30mm
Length of threaded shaft - 9mm
Shaft diameter - 9.52mm (please ensure that the pickguard / control plate that the pot is mounting onto has a minimum 9.6mm diameter hole)
Base of pot diameter - 23.5mm
CTS 'B' 15% taper

Availability
In Stock
