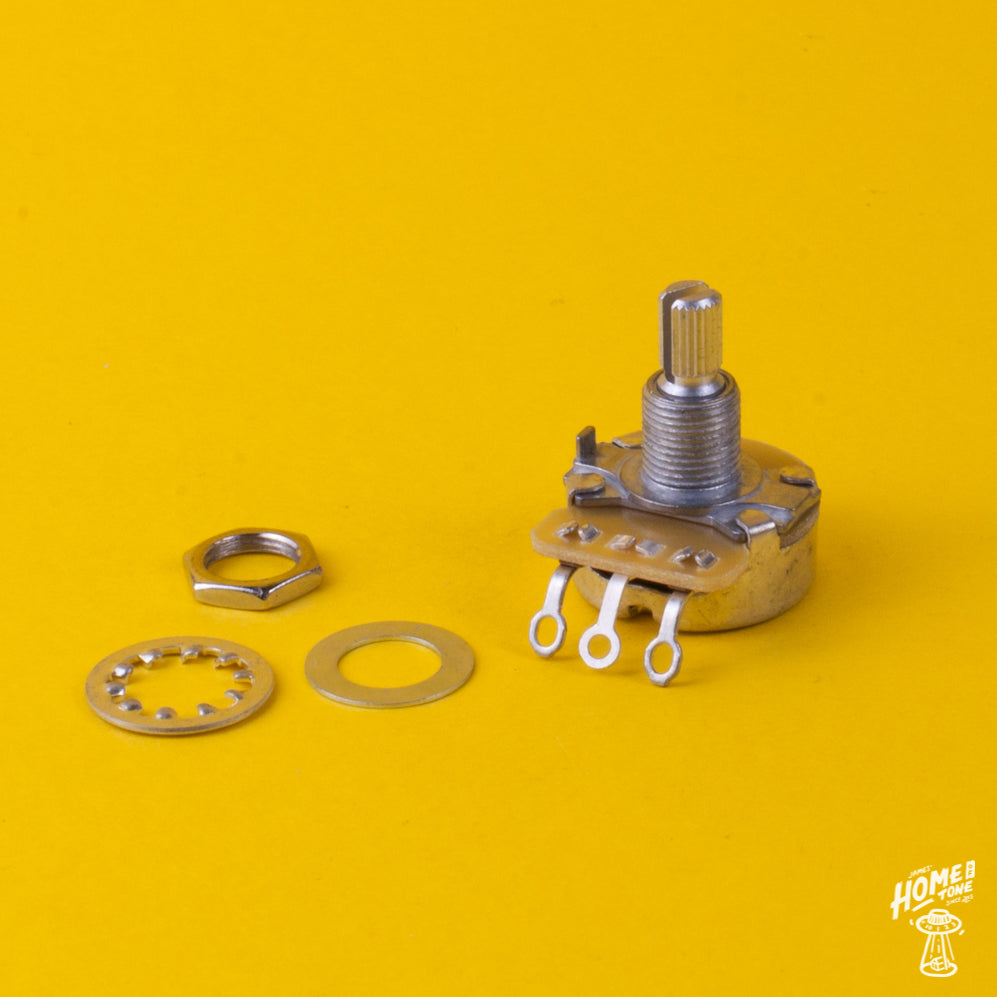

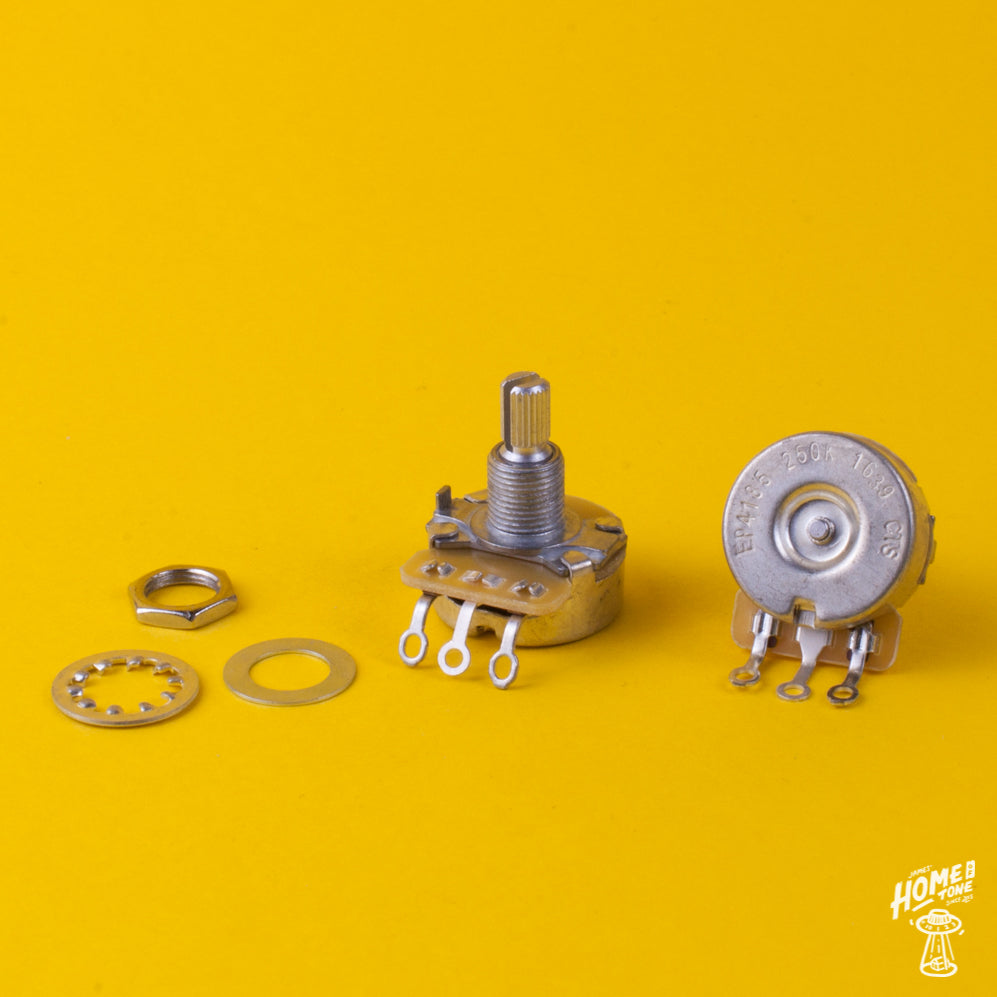

CTS - Split Shaft 250k No Load pot
Please use the tabs below to read through the information about this product.
About
So, what is a no load pot? Predominantly used in the tone position, The no-load tone pot works like a standard tone knob from positions 1-9, but at 10, it is 'removed' from the circuit so that you get the full, un-touched sonic output of your pickup. It means more output and more treble without using a booster pedal or active controls. So if you like the sound of your pickup un-influenced by a pot value, and straight through to the jack, this is a great way to help achieve that sound whilst still having the versatility of being able to turn the pot slightly and have some adjust-ability again. But these can have a variety of uses too, one of which being the pot I use in the ‘Blender’ strat harness, so if you’re looking to do that wiring style yourself the 250k version is the very same pot I use if that helps! Please note that there is a cast molded locator tab, which you may or may not need depending on the guitar it is being installed in. If you don't need it, and you're finding that the tab is preventing the pot from sitting flush against the body/control plate, then you can simple snip this tab off with some quality cutters easily. I do this when using these pot types on any repairs or harness builds so thought it might be helpful info to share!
Specs
Total pot depth - 30mm
Length of threaded shaft - 9mm
Shaft diameter - 9.52mm
Base of pot diameter - 23.5mm
Ordering/shipping
Local pickup - If you are local and wish to collect any items or order in advance for collection on a specific day, then you can still place an order online and select local pickup at the checkout. Or drop me a message and I'll reserve the items ready for your visit.
For online ordering and dispatch - In stock, non made to order items are processed and dispatched 4 days a week; Monday, Tuesday, Wednesday & Friday.
For orders that are placed on a Monday, Tuesday, Wednesday & Friday I have an order cut off time of 14:00GMT (with Royal Mail shipping services only) to allow me chance to process, pack and dispatch your order same day.
For non dispatch days (Saturday, Sunday, & Thursday) there is no order cut-off time, and these will be processed, packed and shipped on the closest following dispatch day.
I will always endeavor to fulfill orders as quickly as I can and if you have specific requirements for a delivery date please do let me know and hopefully I can help.
If you have more queries regarding order placing, processing, fulfillment or general shipping then please see the FAQ page HERE
