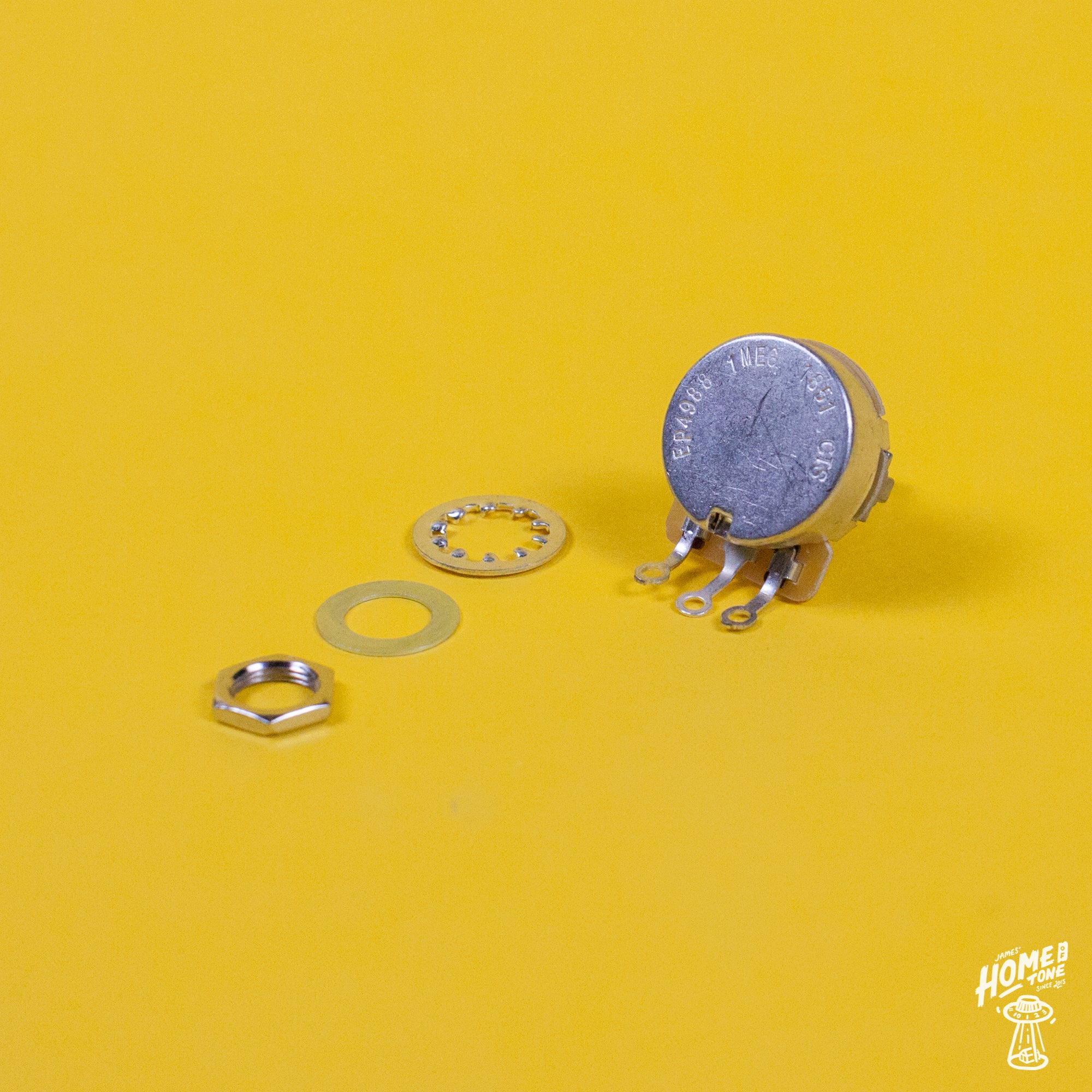

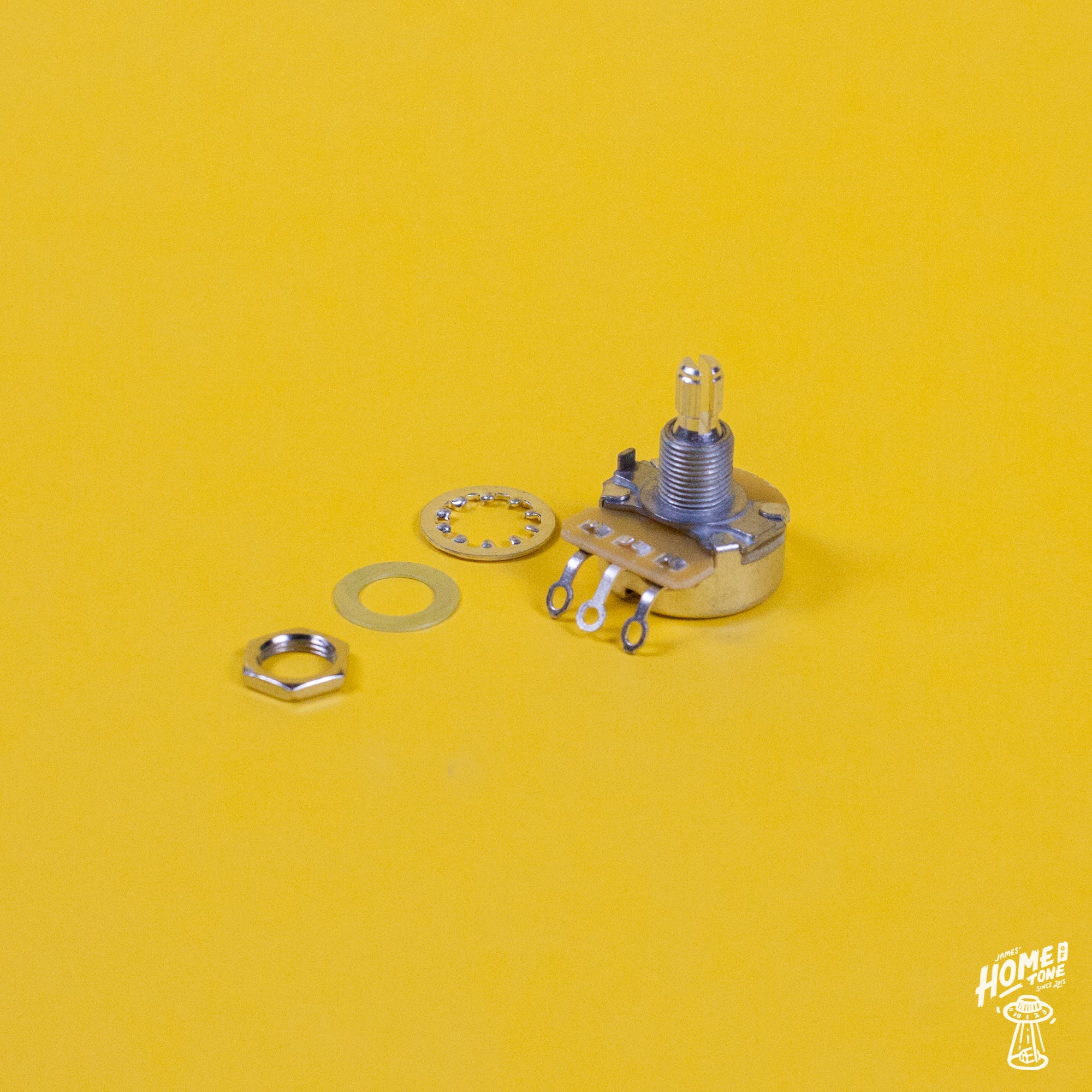

CTS - Split Shaft 1 Meg Linear taper pot

£6.95

This product is currently sold out, feel free to contact us for a delivery estimate

About
I’m a big fan if CTS pots. Some of the best quality items available, great sweep and build. These 1Meg linear items are the perfect upgrade/repair modification pot to use for your Jazzmaster lead circuit. Please note that there is a cast molded locator tab, which you may or may not need depending on the guitar it is being installed in. If you don't need it, and you're finding that the tab is preventing the pot from sitting flush against the body/control plate, then you can simple snip this tab off with some quality cutters easily. I do this when using these pot types on any repairs or harness builds so thought it might be helpful info to share!

Split - These will fit 5.95mm split shaft 24 spline push-fit type control knobs.

Specs
Standard Back - Split Shaft 1 Meg - Linear Taper (vintage Jazzmasters had a linear taper volume pot in the lead circuit so you may be looking for a more vintage correct spec than the more commonly used audio taper in modern times)
Important measurements
Total pot depth - 30mm
Length of threaded shaft - 9mm
Shaft diameter - 9.52mm
Base of pot diameter - 23.5mm

Availability
In Stock
