CRL 5 way switch - USA made wafer selector switch
CRL 5 way switch - USA made wafer selector switch CRL 5 way switch - USA made wafer selector switch CRL 5 way switch - USA made wafer selector switch
CRL 5 way switch - USA made wafer selector switch
CRL 5 way switch - USA made wafer selector switch
CRL 5 way switch - USA made wafer selector switch

CRL 5 way switch - USA made wafer selector switch

£25.99

Please use the tabs below to read through the information about this product.

About

CRL switches are widely regarded as the best quality wafer style pickup switch by guitar makers and repairers alike. You'll also find these available as my main choice on my own wiring harnesses.
Utilising the traditional design of a spring loaded switch mechanism they offer a firm feel in use. As well as using the finest quality components, they offer reliability from their high build quality. Whether you are simply replacing or you're upgrading, these are the go to switches in my opinion!

Specs

CRL 5 Way (E2G0205S-15) PAT no 2503885 made and designed since 1939!
Made in Raleigh, North Carolina, USA
Typically used on 5 position Stratocasters.
Traditional spring-action lever switch.

Control plate/pickguard mounting screws are included.

Helpful measurements -
Centre to centre of the two mounting holes - 41mm
Internal depth - 31.8mm
Internal length - 47.8mm
Internal width 17mm (offset)

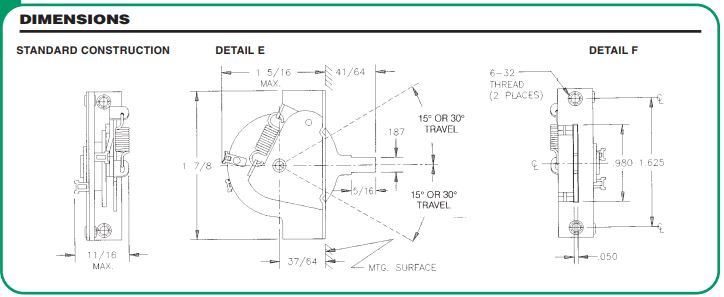

(also included in product images is the technical drawing)

What about the switch tip?

Need a new switch tip too? I also stock a range of switch tips to fit these switches which can be found in the plastic hardware section HERE
