Please use the tabs below to read through the information about this Pre-Wired harness kit. From a run down of what the kit does, to important fitting information and full specs.

Order times

I usually make harnesses to order, due to the variety of spec options that could be chosen across the whole range. The current turnaround time for a harness orders is around 5-7 working days depending on quantity of orders in at the time and your order will be updated accordingly when it is dispatched. This turnaround time doesn't include the transit time. Thanks for your patience whilst I get your harness made!

Model description

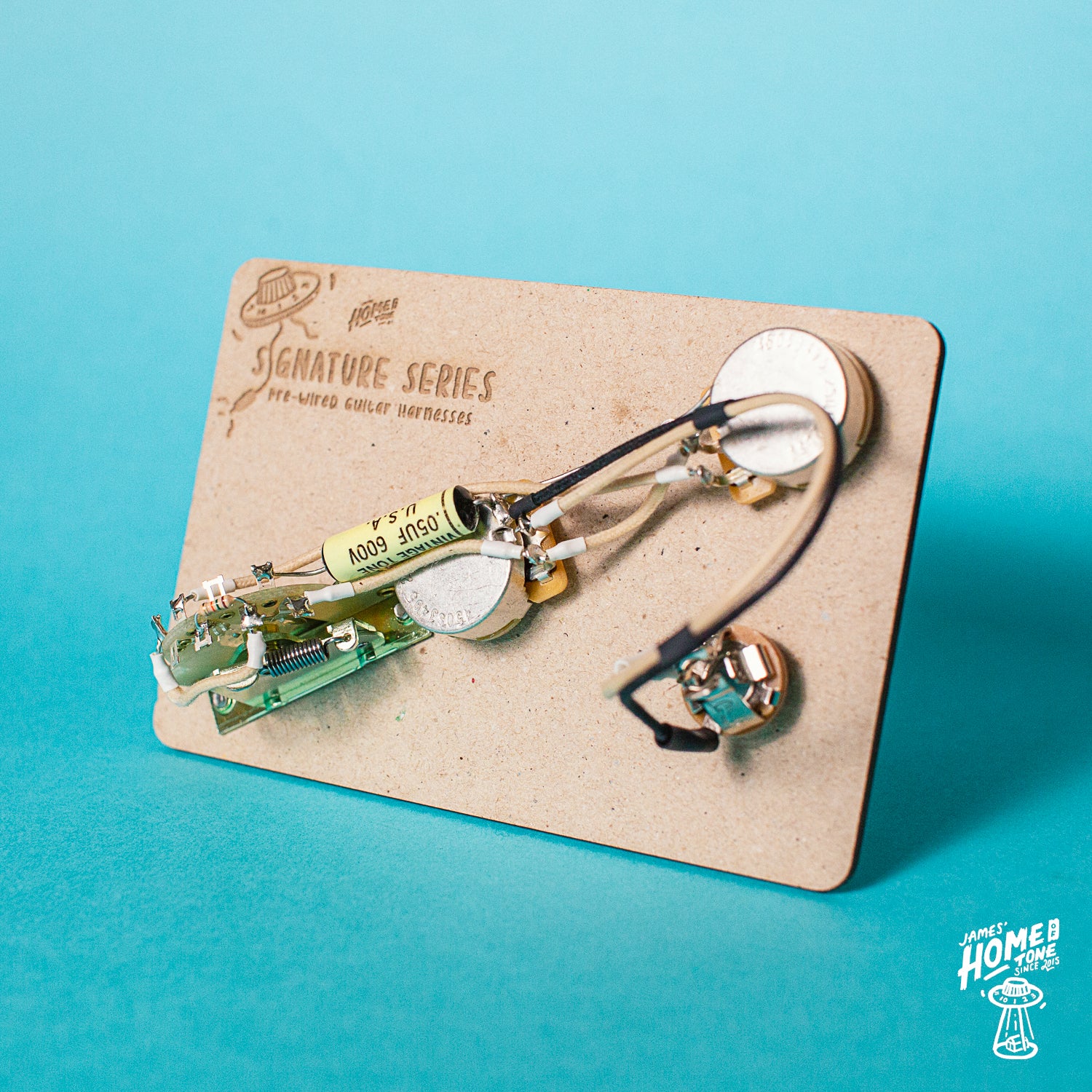

Offering this kit came about as a result of a chat with a customer about Keith Richards' Micawbr, as that instrument started life as a original Broadcaster rather than a Telecaster model. As such, it was originally wired differently to a regular Telecaster we all know well today. With the Broadcaster you had a master volume control, but instead of a conventional tone control, in position 1 (bridge only usually) you can 'blend' in the neck pickup to add warmth to the tone. Then middle position is the neck pickup alone with no tonal control at all and position 3 is the neck pickup running through a fixed tone capacitor. Originally position three results in an incredibly warm tone, as it's traditionally through a .047uF cap which I offer as an option to choose from, or some alternative cap values to suit your preference. More on that below.

Position 1) Bridge pickup with 'blend' neck humbucker using the 2nd 'tone' pot
Position 2) Neck humbucker on it's own, volume control only
Position 3) Neck humbucker via the tone capacitor

Please note, website example photo(s) may differ visually from the wiring kit you receive. This could be for a number of reasons but ultimately, don't be alarmed if you do spot differences between the stock photo and your supplied kit.

Product Options

Tone capacitor value
I offer this pre-wired kit with a choice of tone capacitor. For many years (bulk of the 8+ years I've been making these for that matter) as standard I have installed 0.022uF value tone caps to Telecaster type kits. I opted for this as standard as I consider this a really versatile, 'modern' so to speak cap value choice and has served very well as a standard option over the years. In our trusty guitar player terms, I personally find the 0.022uF equipped wiring by comparison to be clearer, and has served well. But I thought it might be useful to also offer the slightly more 'period correct' so to speak 0.047uF cap value as an option too.
Since Fender introduced this particular way of wiring their Broadcasters in the 50s they used 0.047uF caps, and do still continued to do so on a number of other models to this day. But must say a great deal of 'modern' production models have been featuring a 0.022uF, with both Fender and many aftermarket pickup makers recommending it for optimal use too.
For a number of years I exclusively offered my Broadcaster harness with a 0.01uF cap value too, this was because vintage Tele type neck pickups are prone to being a little warmer, and the 0.01uF can help a little with elleviating that.
Which is right for you, may simply down to personal preference, but if you're not sure or not familiar with these specs understandbly, I would firstly recommend double checking the recommended specs by the pickup maker/model you have in your Tele or plan to fit to your Tele.
To briefly summarise, the 0.047uF by comparison to the 0.022uF will have a subtly 'darker'/warmer tone from full throughout the tone pot sweep, and more so in comparison to the 0.01uF, and if you A/B/C'd the same guitar with the tone pot set at 0 between the three, the 0.047uF would be noticable darker, then the 0.022uF and finally the 0.01uF.

Fitting information

I have intended for my wiring harnesses to be as simple as possible to install to your Telecaster/Broadcaster, as well as writing in depth general fitting guides and simple to follow wiring diagrams for each wiring style. There are also multiple useful how-to guides regarding wiring work found HERE too. But in this section you'll find some important fitting notes that will hopefully help you assess whether the kit is suitable for your exact Tele or what is required to allow it to fit correctly.

Can I fit this kit myself?
This ultimately comes down to whether you own the equipment needed to correctly and safely install the kit, or how comfortable you feel working on your own guitar. I do feel that installing a pre-wired guitar harness is do-able for many guitarists but only if the correct tools are used and care is taken to ensure you do not damage the kit, your guitar or yourself! There are detailed installation guides here on my website, as well as simple to follow wiring diagrams all to help make the process as easy as possible and in my experience, these have helped thousands of my customers carry out their own install. But if for any reason you have concerns about fitting the kit yourself which is entirely understandable, then I'm sure you'll agree that it is likely best to have a professional fit the kit and help ensure your purchased kit, and your beloved guitar are both looked after and worked on correctly.
If you are local to me (Stourbridge, West Midlands) I take on guitar work no problem at all so will certainly be able to help install your Signature Series harness.

Will the pots/jack fit my control plate and jack plate?
The components I use in my Signature Series wiring kits are for the most part, USA imperial specification. If you're fitting this harness to a far east built guitar such as a Squier or similar brand, then you may have to widen the holes in the control plate to accommodate for these imperial measurement pots. Or alternatively, purchase a new control plate that is already suited to the US spec components. The CTS pots and Pure Tone multi contact jack have a mounting thread shaft diameter of 0.369" / 9.38mm so I recommend for ease of install a control plate and/or jackplate with 0.394" / 10mm pot/jack mounting holes. You can easily widen the holes in the control plate too if you would prefer, I recommend doing this safely with a step cutter drill bit. I also offer this as a service so if you would like me to widen your plate for you, do please get in touch and we can organise this additionally.

If you’re buying this kit for a USA or Mexican made Tele, then chances are it will be a direct, no modifications install process for you.

Centre to centre measurements between components are -
Centre of Switch to volume pot - 40mm
Centre of volume pot to centre of tone pot - 64mm
These measurements for my templates were taken from a USA Fender telecaster control plate. There is a small amount of 'give' in the wire lengths between the components, but if for any reason the measurements on your Telecaster are drastically different to those stated above, please do get in touch and I may be able to make your kit with an allowance for this. You will need to provide your centre to centre measurements to me.

What control knobs will fit?
The CTS Solid shaft pots have a solid shaft diameter of 0.248" / 6.30mm. You will need control knobs that suit these measurements and secure to the pot via a grub screw on the control knob.
Do not attempt to force fit smaller, metric/import spec control knobs onto the imperial USA spec pots, doing this can damage the pot.

If you do require a US spec control knobs, I do carry a selection of popular options in stock and they can be viewed in the Control Knob category on the store.

Which switch tip will fit?
Much like with the control knobs, the CRL switch used in this kit is USA spec, with imperial sizes. Therefore you need a switch tip which will fit a CRL switch, which measures 0.185" / 4.72mm

If you do require a US spec switch tip, I do carry a selection of popular options in stock and they can be viewed in the Switch Tips category on the store.

Will the jack socket fit my mount cup/plate?
Much like with the control knob and plate fitting notes, this will ultimately come down to where your guitar was made and/or what hardware it has already. The jack socket I use in this kit again is imperial specification, the outer thread diameter measures 0.367" / 9.32mm and ideally requires a 0.394" / 10mm hole to comfortably mount. If you have a threaded electrosocket style jack cup, you will need the imperial thread pitch version. The jack comes provided with washers and mounting nut

Specs/Parts included

- 2x CTS '450' Series +/-10% Tolerance audio taper short shaft pots - 250k solid shaft
- 1x 'Yellow Mustard' type tone capacitor
- 1x RS Pro Carbon 15kOhm resistor
- 1x Pure Tone multi contact jack socket (nickel finish)
- 1x CRL spring loaded 3 way lever switch
- Gavitt USA made cloth covered 22AWG wire
- 20AWG Tinned copper ground
- Soldered using R-Tech Premium Lead-Free (Sn95.5Ag3.9Cu0.6) 22swg Solder wire
RoHS Compliant

Please note - wiring kit does not include new control knobs/switch tip/control plate etc but does include the pot/jack mounting nuts and washers and switch mounting screws.

Why these spec parts over others available?
Simply put, component choice has been one of the most important parts of my product development. I have worked on guitars for many years, and built these kits professionally since 2015, and as a result have been able to see and experience working on the majority of components available on the market. In my findings, A/B testing and more, I have found the components I decided on for my Signature Series to be the most reliable, best tolerance and great functioning parts to use to help customers get the most out of their instruments. I use CTS '450' series premium spec pots as they have a tight tolerance, and will consistently provide me with accurate value, as well as very solid build quality. I use trusty 'Mustard' style polyester film 'tone' capacitors as in my opinion they simply can't be beat for great value, solid construction, solid lead-outs, super tight tolerances and reliable tone/function. I would personally much rather use a trusty Mustard for example over something like a paper in oil, as from experience that are so much more reliable to use. This is from carrying out a lot of A/B testing, both tonally, as well as armed with the multi-meter for testing values and actual tolerances, as well as handling them to test construction quality for long lasting reliability in use. I use the brilliant 'Pure Tone' Multi Contact Jack sockets as they are incredibly reliable, due to their additional contact points for both tip and sleeve. I use CRL, Oak and Switchcraft brand switches across the range as these are built very well, with care will last for many years to come and have long since provided me with reliable use professionally. All kits are wired up with quality USA made Gavitt wire, it's great to work with, super consistent gauge and provides me with a very reliable quality item for my kits. I totally understand that with anything guitar, it is subjective, but I have, with an open mind, thoroughly tested a broad variety of components over the years and these have all become the items I trust to use every day.

Harness FAQ's

I've been proudly making, developing and installing my pre-wired guitar harnesses since the beginning of the Home of Tone back in 2015 (time flies when you're having fun right!). Although I feel I do my best in covering as much information as possible across the various product listings, fitting guides, wiring diagrams and more, I thought it might be helpful to put together an FAQ's page that covers some of the general additional questions I get asked. You can view these Harness FAQ's HERE

'Ground Bug' deal!

Looking forward to installing your new wiring, but a little worried about making the ground connections to the pot casings? First time soldering and hear the horror stories of frying pots, or just simply want to neaten up your installs? Then the awesome 'Ground Bug' will help with any of these concerns, beginner or pro modders alike. The Ground Bug is a pot washer that fits between the pot casing and the pickguard/body and has a number of lugs (much like with the main signal connections on the pot for example) to which you can very easily solder your ground wire connections too. Completely removing the worry and risk of soldering a pot casing, something I know many guitarists complain about having to learn to do.
I have been stocking Ground Bugs for a while, and they really are the perfect match for a pre-wired harness as they further help you with your installs. So I have set up a 10% off Ground Bug deals when purchased with a Home of Tone Signature Series pre-wired harness. This is an automatic discount code, so all you need to have is a Signature Series kit, and a Ground bug in your cart, and the discount will automatically be applied to the bug for you! Click HERE to view the Ground Bug listing (We recommend the 'Daddy Long Legs' Ground Bug for tighter Telecaster control cavities.

Do you make custom harnesses?

I'm afraid I do not offer a custom harness service. Only kits developed, tested and listed on my website are the available kits. So no custom schematics etc. If you happen to be local to my office, then I do carry out custom work in house, but in regards to shipped out pre-wired harnesses I do not offer custom kits. I am however happy to use different pot values or cap values within reason if you have a specific requirement that differs to the specs listed above. If this is relevant to yourself then please get in touch to discuss further to ensure the request is possible.

Please use the tabs below to read through the information about this Pre-Wired harness kit. From a run down of what the kit does, to important fitting information and full specs.

I usually make harnesses to order, due to the variety of spec options that could be chosen across the whole range. The current turnaround time for a harness orders is around 5-7 working days depending on quantity of orders in at the time and your order will be updated accordingly when it is dispatched. This turnaround time doesn't include the transit time. Thanks for your patience whilst I get your harness made!

Offering this kit came about as a result of a chat with a customer about Keith Richards' Micawbr, as that instrument started life as a original Broadcaster rather than a Telecaster model. As such, it was originally wired differently to a regular Telecaster we all know well today. With the Broadcaster you had a master volume control, but instead of a conventional tone control, in position 1 (bridge only usually) you can 'blend' in the neck pickup to add warmth to the tone. Then middle position is the neck pickup alone with no tonal control at all and position 3 is the neck pickup running through a fixed tone capacitor. Originally position three results in an incredibly warm tone, as it's traditionally through a .047uF cap which I offer as an option to choose from, or some alternative cap values to suit your preference. More on that below.

Position 1) Bridge pickup with 'blend' neck humbucker using the 2nd 'tone' pot
Position 2) Neck humbucker on it's own, volume control only
Position 3) Neck humbucker via the tone capacitor

Please note, website example photo(s) may differ visually from the wiring kit you receive. This could be for a number of reasons but ultimately, don't be alarmed if you do spot differences between the stock photo and your supplied kit.

Tone capacitor value
I offer this pre-wired kit with a choice of tone capacitor. For many years (bulk of the 8+ years I've been making these for that matter) as standard I have installed 0.022uF value tone caps to Telecaster type kits. I opted for this as standard as I consider this a really versatile, 'modern' so to speak cap value choice and has served very well as a standard option over the years. In our trusty guitar player terms, I personally find the 0.022uF equipped wiring by comparison to be clearer, and has served well. But I thought it might be useful to also offer the slightly more 'period correct' so to speak 0.047uF cap value as an option too.
Since Fender introduced this particular way of wiring their Broadcasters in the 50s they used 0.047uF caps, and do still continued to do so on a number of other models to this day. But must say a great deal of 'modern' production models have been featuring a 0.022uF, with both Fender and many aftermarket pickup makers recommending it for optimal use too.
For a number of years I exclusively offered my Broadcaster harness with a 0.01uF cap value too, this was because vintage Tele type neck pickups are prone to being a little warmer, and the 0.01uF can help a little with elleviating that.
Which is right for you, may simply down to personal preference, but if you're not sure or not familiar with these specs understandbly, I would firstly recommend double checking the recommended specs by the pickup maker/model you have in your Tele or plan to fit to your Tele.
To briefly summarise, the 0.047uF by comparison to the 0.022uF will have a subtly 'darker'/warmer tone from full throughout the tone pot sweep, and more so in comparison to the 0.01uF, and if you A/B/C'd the same guitar with the tone pot set at 0 between the three, the 0.047uF would be noticable darker, then the 0.022uF and finally the 0.01uF.

I have intended for my wiring harnesses to be as simple as possible to install to your Telecaster/Broadcaster, as well as writing in depth general fitting guides and simple to follow wiring diagrams for each wiring style. There are also multiple useful how-to guides regarding wiring work found HERE too. But in this section you'll find some important fitting notes that will hopefully help you assess whether the kit is suitable for your exact Tele or what is required to allow it to fit correctly.

Can I fit this kit myself?
This ultimately comes down to whether you own the equipment needed to correctly and safely install the kit, or how comfortable you feel working on your own guitar. I do feel that installing a pre-wired guitar harness is do-able for many guitarists but only if the correct tools are used and care is taken to ensure you do not damage the kit, your guitar or yourself! There are detailed installation guides here on my website, as well as simple to follow wiring diagrams all to help make the process as easy as possible and in my experience, these have helped thousands of my customers carry out their own install. But if for any reason you have concerns about fitting the kit yourself which is entirely understandable, then I'm sure you'll agree that it is likely best to have a professional fit the kit and help ensure your purchased kit, and your beloved guitar are both looked after and worked on correctly.
If you are local to me (Stourbridge, West Midlands) I take on guitar work no problem at all so will certainly be able to help install your Signature Series harness.

Will the pots/jack fit my control plate and jack plate?
The components I use in my Signature Series wiring kits are for the most part, USA imperial specification. If you're fitting this harness to a far east built guitar such as a Squier or similar brand, then you may have to widen the holes in the control plate to accommodate for these imperial measurement pots. Or alternatively, purchase a new control plate that is already suited to the US spec components. The CTS pots and Pure Tone multi contact jack have a mounting thread shaft diameter of 0.369" / 9.38mm so I recommend for ease of install a control plate and/or jackplate with 0.394" / 10mm pot/jack mounting holes. You can easily widen the holes in the control plate too if you would prefer, I recommend doing this safely with a step cutter drill bit. I also offer this as a service so if you would like me to widen your plate for you, do please get in touch and we can organise this additionally.

If you’re buying this kit for a USA or Mexican made Tele, then chances are it will be a direct, no modifications install process for you.

Centre to centre measurements between components are -
Centre of Switch to volume pot - 40mm
Centre of volume pot to centre of tone pot - 64mm
These measurements for my templates were taken from a USA Fender telecaster control plate. There is a small amount of 'give' in the wire lengths between the components, but if for any reason the measurements on your Telecaster are drastically different to those stated above, please do get in touch and I may be able to make your kit with an allowance for this. You will need to provide your centre to centre measurements to me.

What control knobs will fit?
The CTS Solid shaft pots have a solid shaft diameter of 0.248" / 6.30mm. You will need control knobs that suit these measurements and secure to the pot via a grub screw on the control knob.
Do not attempt to force fit smaller, metric/import spec control knobs onto the imperial USA spec pots, doing this can damage the pot.

If you do require a US spec control knobs, I do carry a selection of popular options in stock and they can be viewed in the Control Knob category on the store.

Which switch tip will fit?
Much like with the control knobs, the CRL switch used in this kit is USA spec, with imperial sizes. Therefore you need a switch tip which will fit a CRL switch, which measures 0.185" / 4.72mm

If you do require a US spec switch tip, I do carry a selection of popular options in stock and they can be viewed in the Switch Tips category on the store.

Will the jack socket fit my mount cup/plate?
Much like with the control knob and plate fitting notes, this will ultimately come down to where your guitar was made and/or what hardware it has already. The jack socket I use in this kit again is imperial specification, the outer thread diameter measures 0.367" / 9.32mm and ideally requires a 0.394" / 10mm hole to comfortably mount. If you have a threaded electrosocket style jack cup, you will need the imperial thread pitch version. The jack comes provided with washers and mounting nut

- 2x CTS '450' Series +/-10% Tolerance audio taper short shaft pots - 250k solid shaft
- 1x 'Yellow Mustard' type tone capacitor
- 1x RS Pro Carbon 15kOhm resistor
- 1x Pure Tone multi contact jack socket (nickel finish)
- 1x CRL spring loaded 3 way lever switch
- Gavitt USA made cloth covered 22AWG wire
- 20AWG Tinned copper ground
- Soldered using R-Tech Premium Lead-Free (Sn95.5Ag3.9Cu0.6) 22swg Solder wire
RoHS Compliant

Please note - wiring kit does not include new control knobs/switch tip/control plate etc but does include the pot/jack mounting nuts and washers and switch mounting screws.

Why these spec parts over others available?
Simply put, component choice has been one of the most important parts of my product development. I have worked on guitars for many years, and built these kits professionally since 2015, and as a result have been able to see and experience working on the majority of components available on the market. In my findings, A/B testing and more, I have found the components I decided on for my Signature Series to be the most reliable, best tolerance and great functioning parts to use to help customers get the most out of their instruments. I use CTS '450' series premium spec pots as they have a tight tolerance, and will consistently provide me with accurate value, as well as very solid build quality. I use trusty 'Mustard' style polyester film 'tone' capacitors as in my opinion they simply can't be beat for great value, solid construction, solid lead-outs, super tight tolerances and reliable tone/function. I would personally much rather use a trusty Mustard for example over something like a paper in oil, as from experience that are so much more reliable to use. This is from carrying out a lot of A/B testing, both tonally, as well as armed with the multi-meter for testing values and actual tolerances, as well as handling them to test construction quality for long lasting reliability in use. I use the brilliant 'Pure Tone' Multi Contact Jack sockets as they are incredibly reliable, due to their additional contact points for both tip and sleeve. I use CRL, Oak and Switchcraft brand switches across the range as these are built very well, with care will last for many years to come and have long since provided me with reliable use professionally. All kits are wired up with quality USA made Gavitt wire, it's great to work with, super consistent gauge and provides me with a very reliable quality item for my kits. I totally understand that with anything guitar, it is subjective, but I have, with an open mind, thoroughly tested a broad variety of components over the years and these have all become the items I trust to use every day.

I've been proudly making, developing and installing my pre-wired guitar harnesses since the beginning of the Home of Tone back in 2015 (time flies when you're having fun right!). Although I feel I do my best in covering as much information as possible across the various product listings, fitting guides, wiring diagrams and more, I thought it might be helpful to put together an FAQ's page that covers some of the general additional questions I get asked. You can view these Harness FAQ's HERE

Looking forward to installing your new wiring, but a little worried about making the ground connections to the pot casings? First time soldering and hear the horror stories of frying pots, or just simply want to neaten up your installs? Then the awesome 'Ground Bug' will help with any of these concerns, beginner or pro modders alike. The Ground Bug is a pot washer that fits between the pot casing and the pickguard/body and has a number of lugs (much like with the main signal connections on the pot for example) to which you can very easily solder your ground wire connections too. Completely removing the worry and risk of soldering a pot casing, something I know many guitarists complain about having to learn to do.
I have been stocking Ground Bugs for a while, and they really are the perfect match for a pre-wired harness as they further help you with your installs. So I have set up a 10% off Ground Bug deals when purchased with a Home of Tone Signature Series pre-wired harness. This is an automatic discount code, so all you need to have is a Signature Series kit, and a Ground bug in your cart, and the discount will automatically be applied to the bug for you! Click HERE to view the Ground Bug listing (We recommend the 'Daddy Long Legs' Ground Bug for tighter Telecaster control cavities.

I'm afraid I do not offer a custom harness service. Only kits developed, tested and listed on my website are the available kits. So no custom schematics etc. If you happen to be local to my office, then I do carry out custom work in house, but in regards to shipped out pre-wired harnesses I do not offer custom kits. I am however happy to use different pot values or cap values within reason if you have a specific requirement that differs to the specs listed above. If this is relevant to yourself then please get in touch to discuss further to ensure the request is possible.
